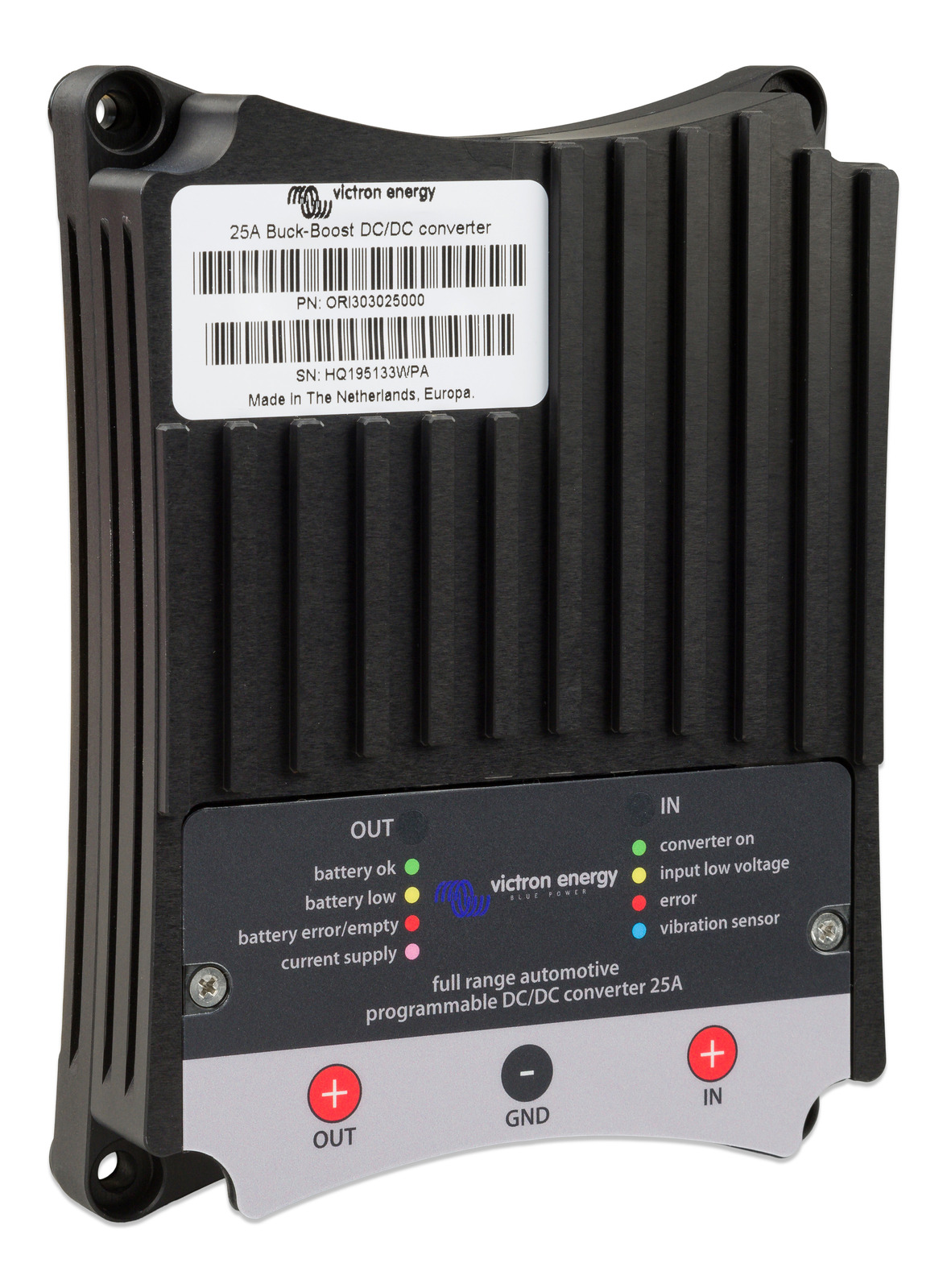

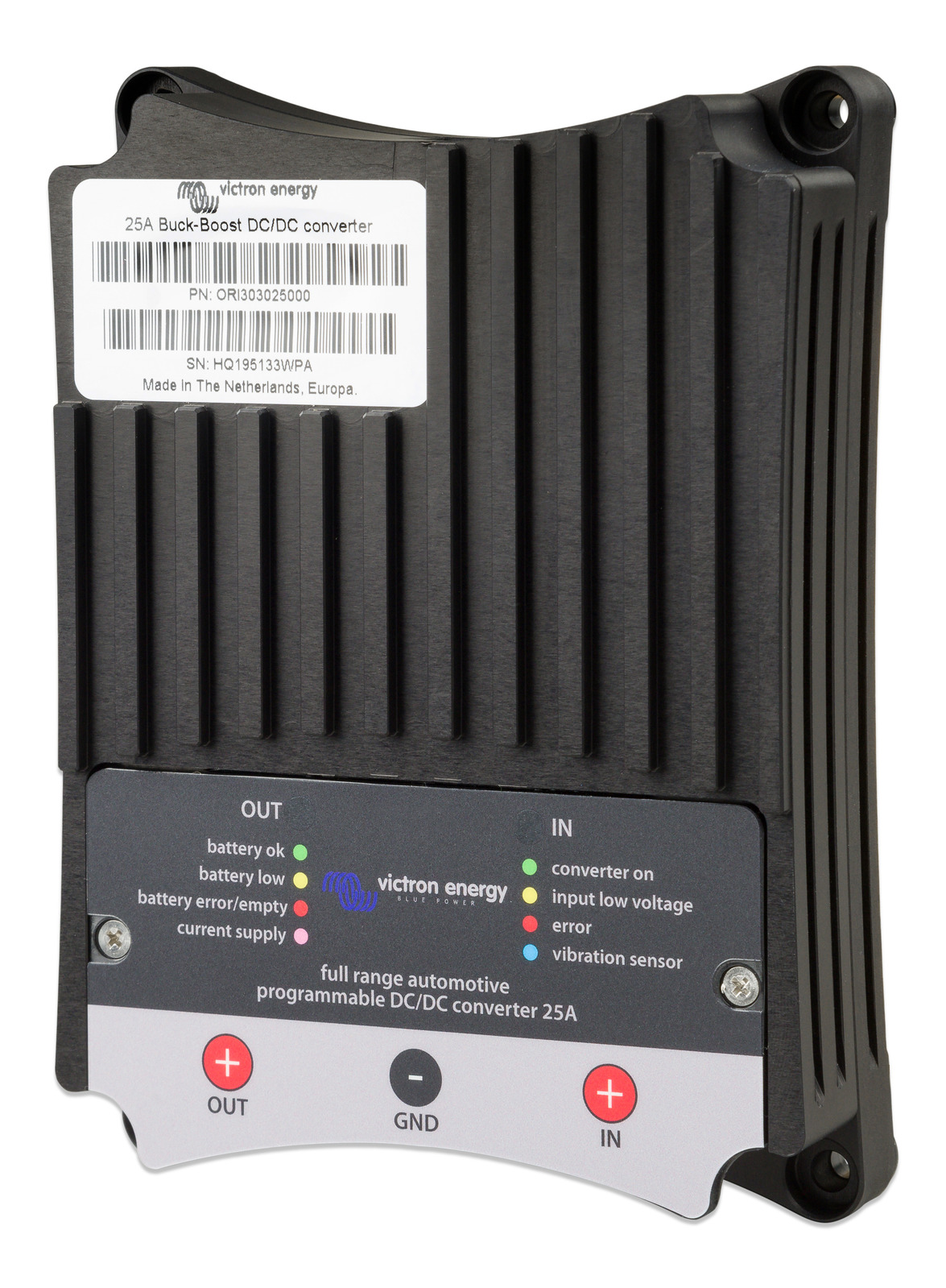

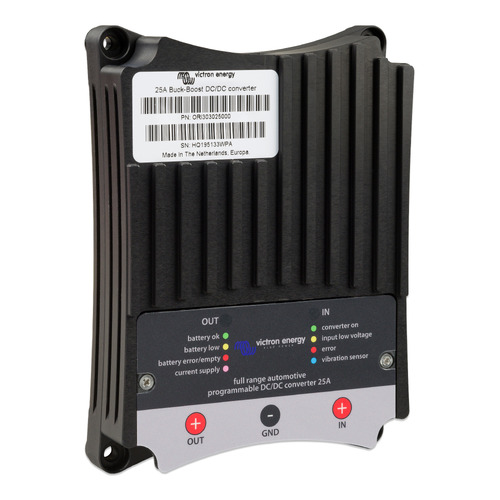

DC-DC Converter for charging a 12/24V service battery in vehicles with an intelligent dynamo.

The Buck-Boost DC-DC Converter is a DC-DC converter for charging a 12/24V service battery in vehicles with an intelligent dynamo. Since, when the engine is running, these dynamos (powered by the on-board electronics of Euro 5 and 6 engines) do not always emit the correct charging current, a DC-DC converter is essential for charging the service battery properly.

‘Engine running’ detection system
Deep discharge of the vehicle's starting battery is avoided by a built-in ‘engine running’ detection system. Instead of this detection system, the converter can also be activated by means of a programmable input (D+, CAN bus* or (+)15 connection).

Fully programmable
The converter can be fully programmed by means of a simple and user-friendly PC application. (USB type A male to USB type B male cable needed)

One product for 12V, 24V and 12/24V systems
The converter can be programmed to charge a 12V or a 24V auxiliary battery from either a 12V or a 24V alternator and starter battery.

Charge current and input current limiter
The output current is determined by the following factors:
- The maximum charge current setting.
- The maximum input current setting.
- The maximum operating temperature limit of the converter.

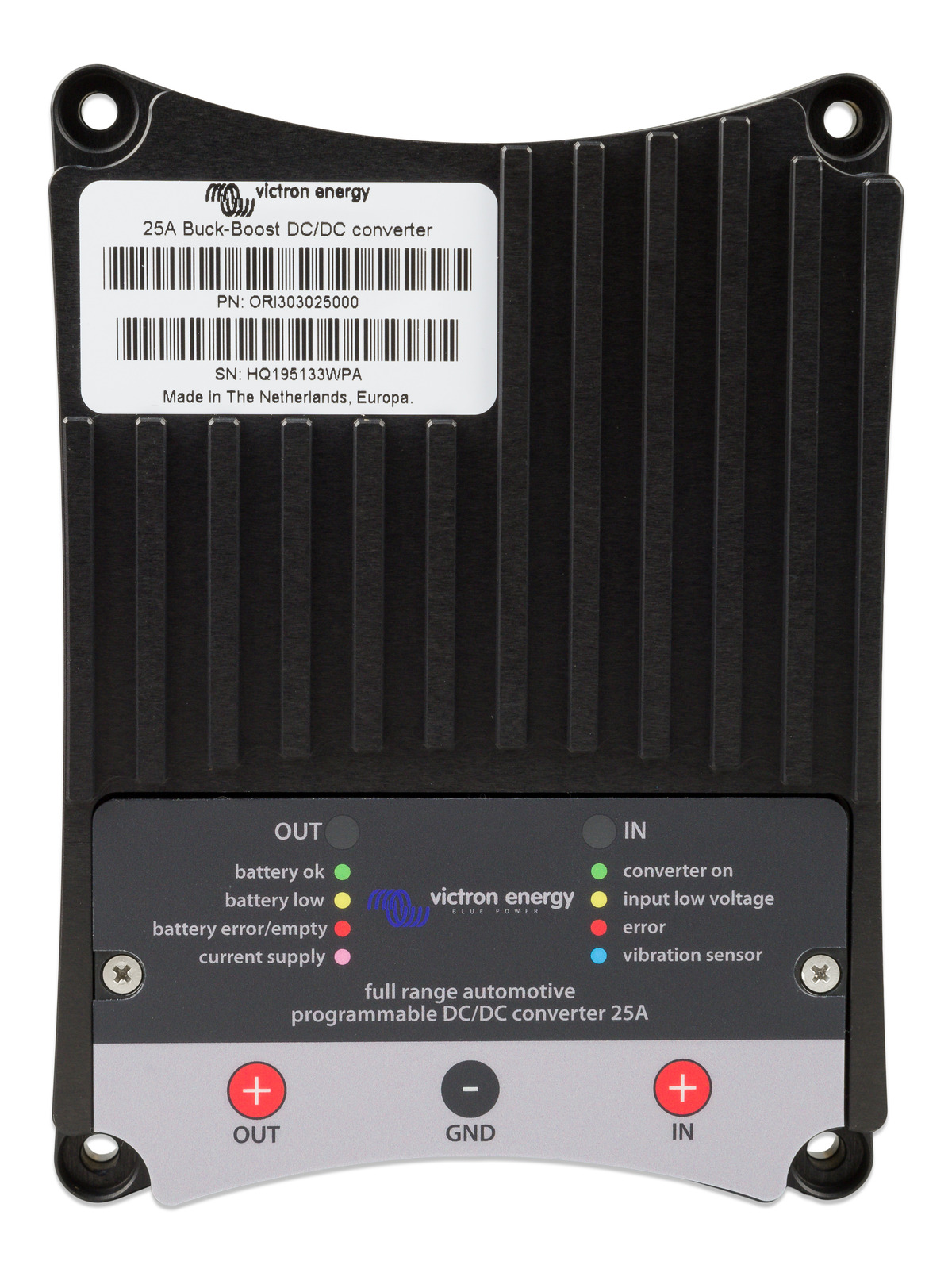

Input status indication (LED)
Green: converter on.
Yellow: input voltage below threshold, converter off.
Red: over temperature, converter off.
Blue, quick flash: engine running, converter will start after preset delay.
Blue, slow flash: the converter is OFF and activation is blocked due to low input voltage.

Output status indication (LED)
Green: converter off, battery voltage normal.
Yellow: converter off, battery voltage low.
Red: converter off, battery discharged or not connected.
Purple: converter on.

*The 25A model does not have a CAN bus connection

Model Buck-Boost DC-DC Converter 25A
Input voltage range 10-30V
Under voltage threshold 10V
Output voltage range 10-30V
Maximum charge current 12V : 25A
24V : 15A
Power Consumption Converter off, LEDs off (power save mode) 7 mA
On/Off input (pin 1, purple wire)
‘On’ threshold voltage > 2V
Maximum input voltage 30V
Output pin 1 and pin 2
Output voltage if activated Vpinout = Vin
Maximum current (per pin) I pinout = 1A
Operating temperature range (derate 3% per °C above 40°C) -25 to +60°C
DC connection I pinout = 1A
Ambient temperature Max current: up to 60°C
Weight kg 0.6kg
Dimensions mm (HxWxD) 165x120x30



SKU 8719076035909
Barcode # ORI303025000
Brand Victron
Shipping Weight 1.1000kg
Shipping Width 0.045m
Shipping Height 0.140m
Shipping Length 0.210m
Shipping Cubic 0.001323000m3
