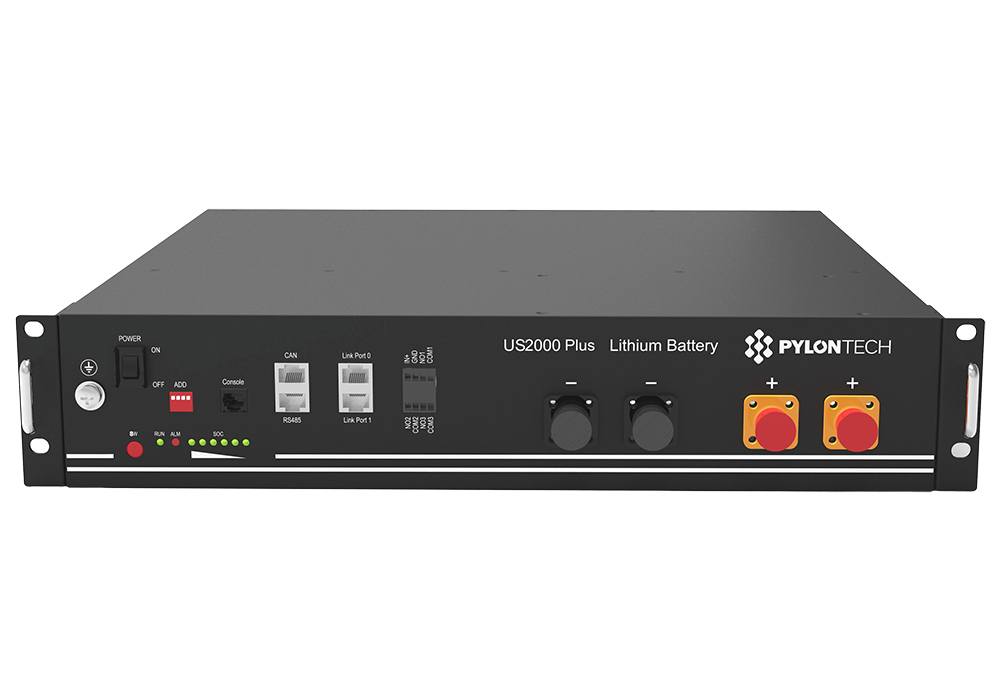

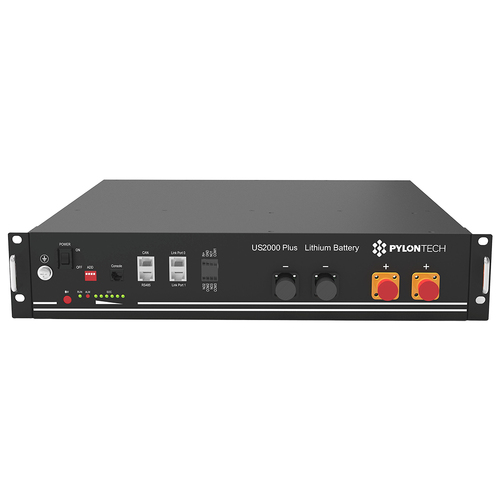

US2000 series is an ideal solution for residential storage applications, with standard 48V/50AH specification, up to 90% usable capacity and 6,000 cycle-life warranty.

Each Battery comes with a 180MM long interlinking Kit to connect batteries in Parallel

They are also suitable for self-consumption applications, such as solar systems, rated at 24V

Features:

• Cycle life: >6000 cycles @ 25°C with 90% DoD for daily cyclic applications
• Usable capcity of 2.16kWh @ 48 VDC
• Working Temperature Range -10°C to 50°C, (Charging 0~50°C: Discharging -10~50°C)

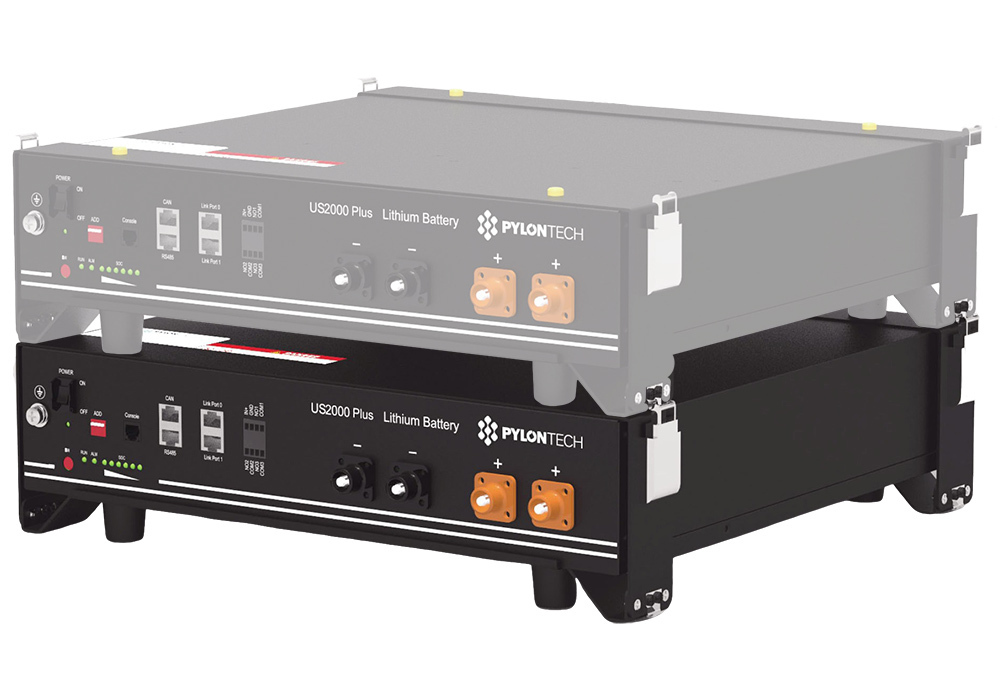

• Compact and fashionable 19" rack design to suit bracket, rack or cabinet installations
• Modular design gives the you the power to design systems from 2.4kWh to a commercial sized 480kWh
• Compatible with many available Hybrid inverters
• Safety Cert.TüV, CE, R0HS, UN38, IEC62619, IEC62040, IEC61000-6-2, IEC61000-3
• Communication Protocols: CAN, RS485, RS232
• 15+ Year Design Life
• 10 year Warranty
• Clean Energy Council Approved (CEC)

Important Information:

• This Pylontech Battery can be connected in Unlimited Parallel configurations.
• No Series connection allowed

External BMS

• A LV-HUB communications hub is required when more than 1 string of batteries is paralleled.
• A single LV-HUB communications hub can manage up to 5 strings of 8 batteries for a total of 40 US2000 batteries per LV-Hub
• A total of five LV Hubs and their associated 40 batteries can then be parralled to a total 200 US2000 Batteries.
• Systems containing between 2 to 5 LV Hubs will require 1 additional LV Hub to act as the Master Hub.

Communications:

• RS232
• RS485
• CAN



*Please note: the UP/US Cable Kit is required for connection to the Inverter/Charger

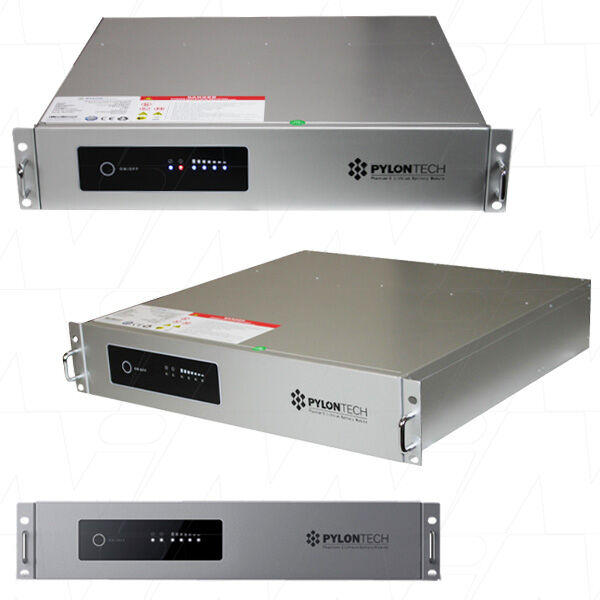

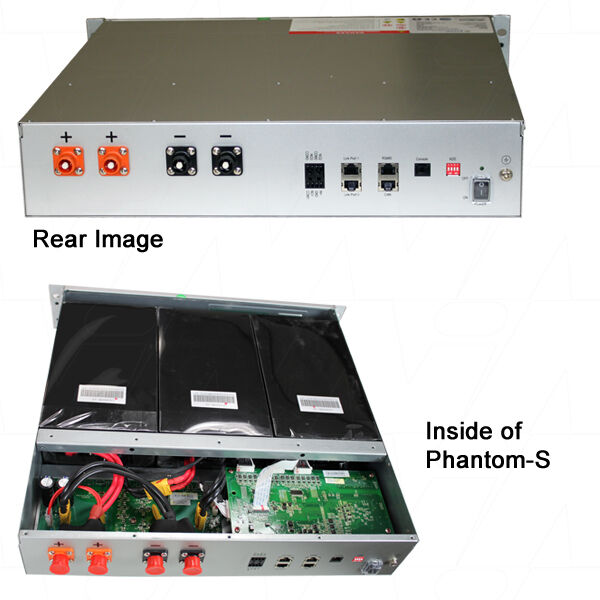

View the Victron Compatibility Manual for Pylontech UP2500, US2000, US3000, Phantom-S & Force-L1 Battery Models
