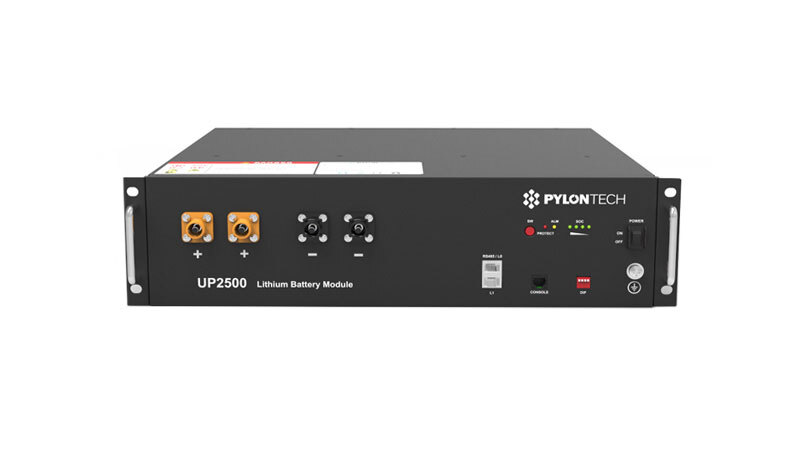

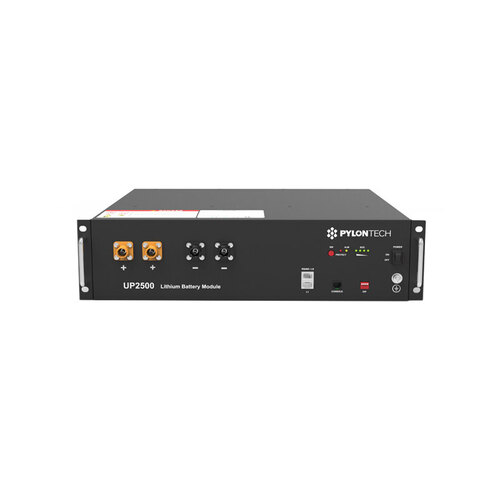

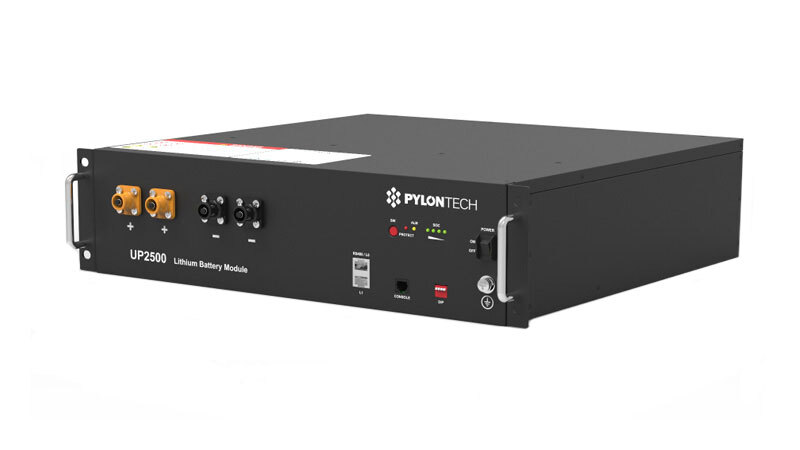

UP2500 series is the perfect solution for large scale UPS and similar battery back-up systems used in hospitals, data centres, office lighting and telecommunications stations.

They are also suitable for self-consumption applications, such as solar systems, rated at 24V

Features:

  • Cycle life: >6000 cycles @ 25°C with 90% DoD for daily cyclic applications
  • Working Temperature Range -10°C to 55°C, (Charging 0~55°C: Discharging -10~55°C)
  • Compact  19" rack design to suit rack or cabinet installations
  • Modular design gives the you the power of choice of capacity
  • Compatible with Victron Hybrid inverters
  • Safety Cert.TüV, CE, R0HS, UN38, IEC62619
  • Communication Protocols: CAN, RS485
  • 10+ Year Design Life
  • 7 year Warranty
  • Cell Balancing and multiple internal safety protocols

Important Information:

  • This Pylontech Battery can be connected in up to 20 Batteries in Parrallel
  • No Series connection allowed

INTERNAL BMS

  • The UP2500 has a built in Battery Management System (BMS), which can manage & monitor cell information including voltage, current & temperature
  • No LV Hub is required.

Communications:

  • RS485
  • CAN
System Integration:
The Pylontech UP2500 battery can be integrated with the Victron Inverter Charger range.
UP/US Cable Kit thumbnail *Please note: the UP/US Cable Kit is required for connection to the Inverter/Charger



SKU BATUP2500
Barcode # UP2500
Brand Pylontech
Shipping Weight 32.0000kg
Shipping Width 0.550m
Shipping Height 0.200m
Shipping Length 0.600m
Shipping Cubic 0.066000000m3
